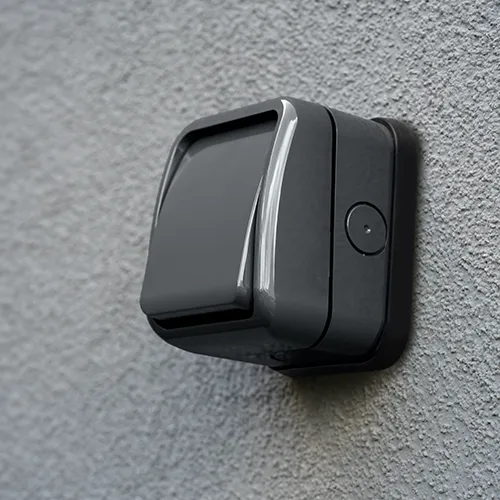

IP66 Weatherproof Sockets & Switches

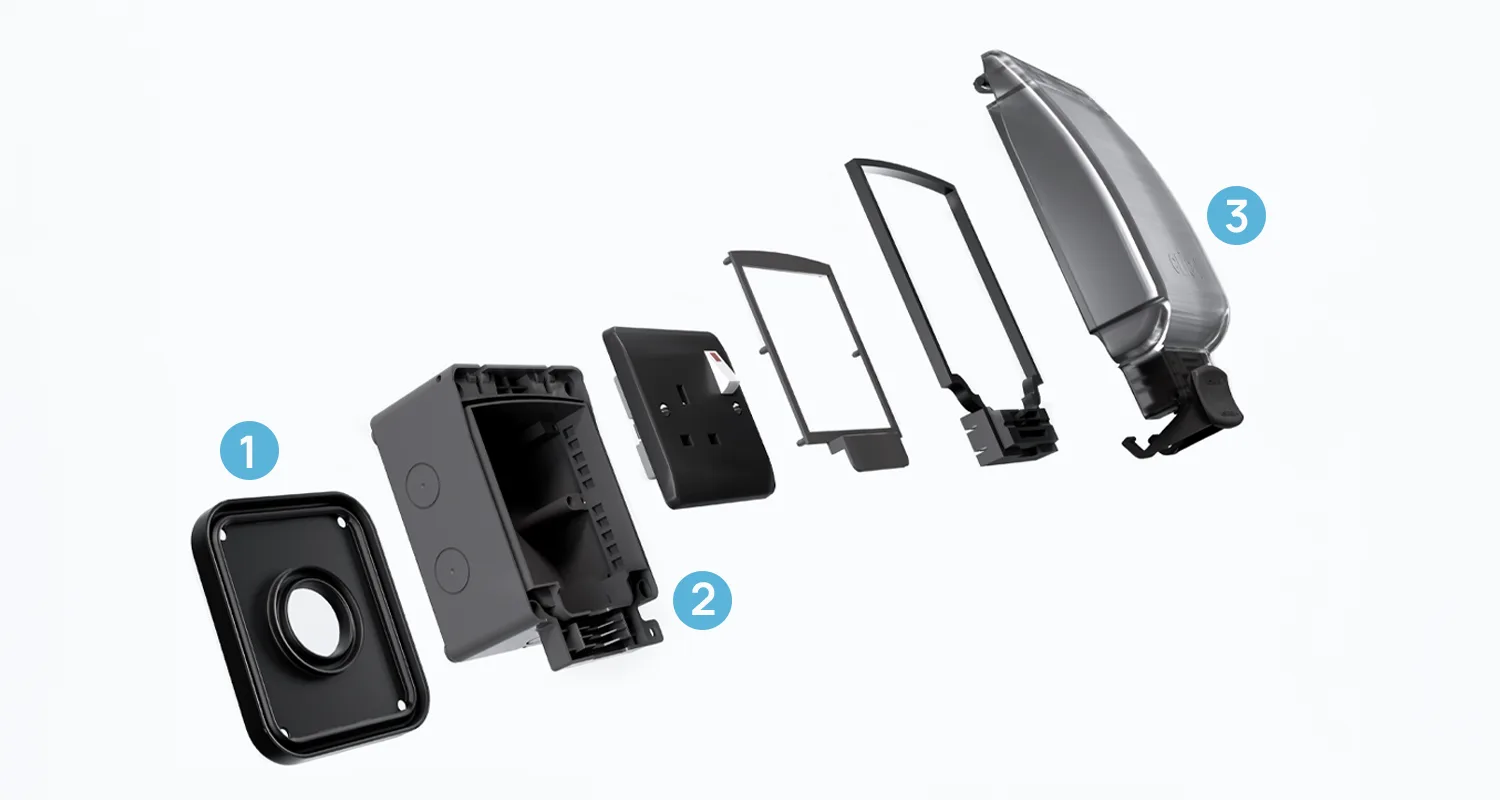

Building on Scolmore’s reputation for supplying quick and flexible solutions, the IP66-rated weatherproof socket and switch enclosures offer users a single fix installation - with the whole of the back box fixing to the wall to accommodate the socket or modules. Multiple knock-outs on each side (20mm) allow for entry from all angles, and a flexible rubber base with rear entry gasket provides extra weatherproof protection, as well as allowing for mounting on most types of uneven surfaces.

The sockets and switches can be purchased as empty unfurnished boxes or furnished with the appropriate socket or switch modules. A spring loaded lid makes for easy access and the units are also lockable which safeguards them against tampering, as well as allowing for safe isolation.

The range is supplied in anthracite grey, with its robust construction providing high-impact resistance and it is UV protected against fading. The versatility of the range means the units can be used for a wide range of wiring accessories including Fused Connection Units and Isolation Switches.


Robust Construction

• Polycarbonate construction
• High impact resistance
• UV protected against fading
• Ergonomic Design
• Smooth operation of switches
• Neutral modern design suitable for most locations
• Flexible rubber base allows for mounting on most types of uneven surfaces

Multiple Gland Entry Position

• Polycarbonate construction

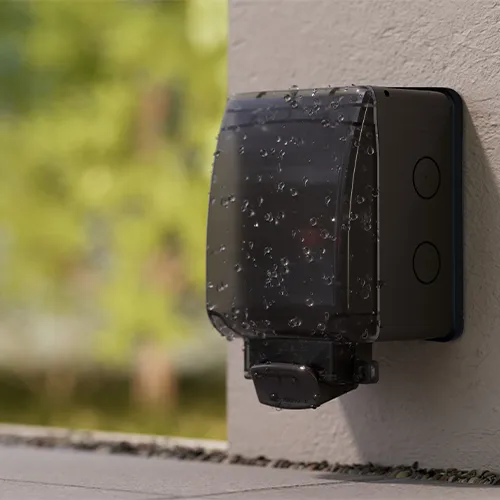

Weatherproof - IP66

• Offers high level of protection against ingress of water jets and dust

Multiple Switch Configurations

• Designed to fit any MiniGrid modules (13A Max)


OA411AG

1 Gang 2-way
Weatherproof Switch
Fitted with a 2-way Minigrid module

OA401AG

1 Gang Weatherproof
Switch Enclosure
Modules supplied separately


OA412AG

2 Gang 2-way
Weatherproof Switch
Fitted with 2 x 2-way
Minigrid modules

OA402AG

2 Gang Weatherproof
Switch Enclosure
Modules supplied separately


OA035AG

1 Gang Weatherproof Socket. Fitted with
a 1 gang Mode
switched socket.

OA501AG

1 Gang Weatherproof Unfurnished Enclosure


OA036AG

2 Gang Weatherproof Socket. Fitted with
a 2 gang Mode
switched socket.

OA502AG

2 Gang Weatherproof Unfurnished
Enclosure
